CrossFire CRSF

---

CrossFire CRSF is bi-directional protocol designed by Team Blacksheep (TBS) which is supported by all Spirit units except Spirit 1 and micro Spirit. It is for sending all channel data and telemetry at the same time. This mean that you do not have to connect anything else except 4 wires. Based on original CRSF protocol new ELRS protocol was designed which is also fully supported by Spirit.

There are multiple receivers and satellites with CRSF/ELRS support.

1 Wiring

From Spirit firmware 3.7.4 wiring was changed!

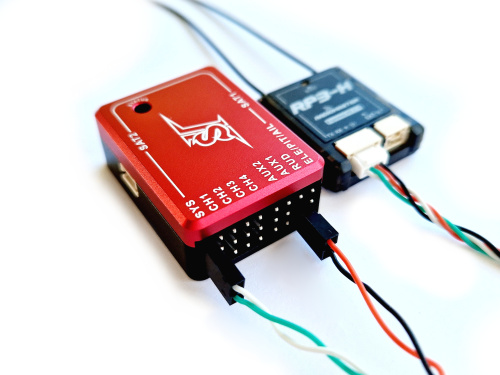

1.1 Spirit 2, Spirit Pro

1.1.1 NEW

RUD port - black -, red + powering wires

SYS port - white TX signal (pin closer to the port label), green RX signal (center pin).

1.1.2 DEPRECATED

Previous Spirit firmware 3.7.3 and older supported following wiring only. For Telemetry and Integration support it is required to use new Wiring scheme using the SYS port.

RUD port - black -, red + powering wires.

AIL pin - green RX signal (pin closer to the port label).

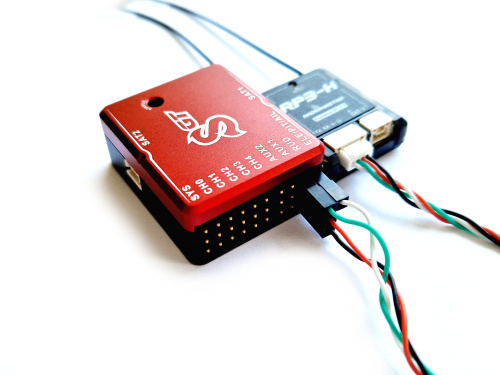

1.2 Spirit GT, Spirit W1

RUD port - black -, red + powering wires, green RX signal.

AIL pin - white TX signal (pin closer to the port label).

2 Spirit Settings

Now you are ready to power up the unit. If your Power supply is not connected yet, we recommend to connect it to the AUX1, AUX2 and/or CH0 port. Before you can utilize the CrossFire connection, it is important to set the CRSF/ELRS receiver type at the General tab of the software. Please start the Spirit Settings and change the receiver type as displayed on the photo. Then save the settings (e.g. by CTRL+S) or the Backup tab/Unit - Save and restart the unit.

3 Throttle output

You can connect ESC or Throttle servo directly to the Spirit unit at (AUX/AUX1 port).

4 Radio Integration

Integration support is available from Spirit firmware version 3.7.4. Integration menu can be opened at the Crossfire configure menu.

4.1 Integration menu

1. Press SYS button (if using RadioMaster radio).
2. Enter ELRS Lua script > Other Devices / Crossfire configure menu depending on OpenTX/EdgeTX firmware.
3. Look for Spirit FBL entry - entry should be available if wiring is correct.
4. Enter the menu. When configuration is done, press the RTN button which will automatically save all changes.

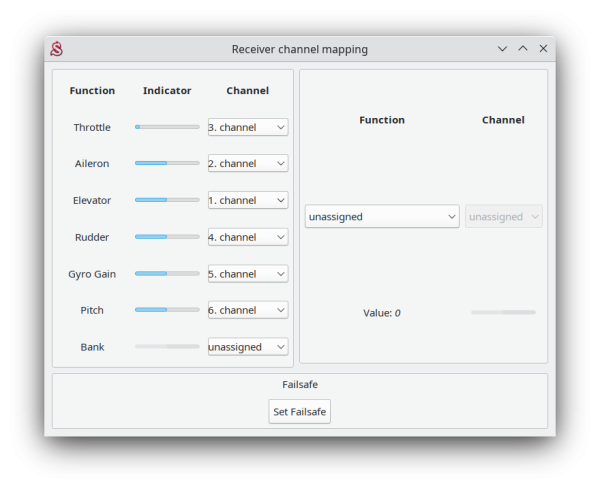

4.2 Spirit Settings

ELRS connection require to change Channel Mapping from default.

Elevator should be set to Channel 1. Throttle to Channel 3.
